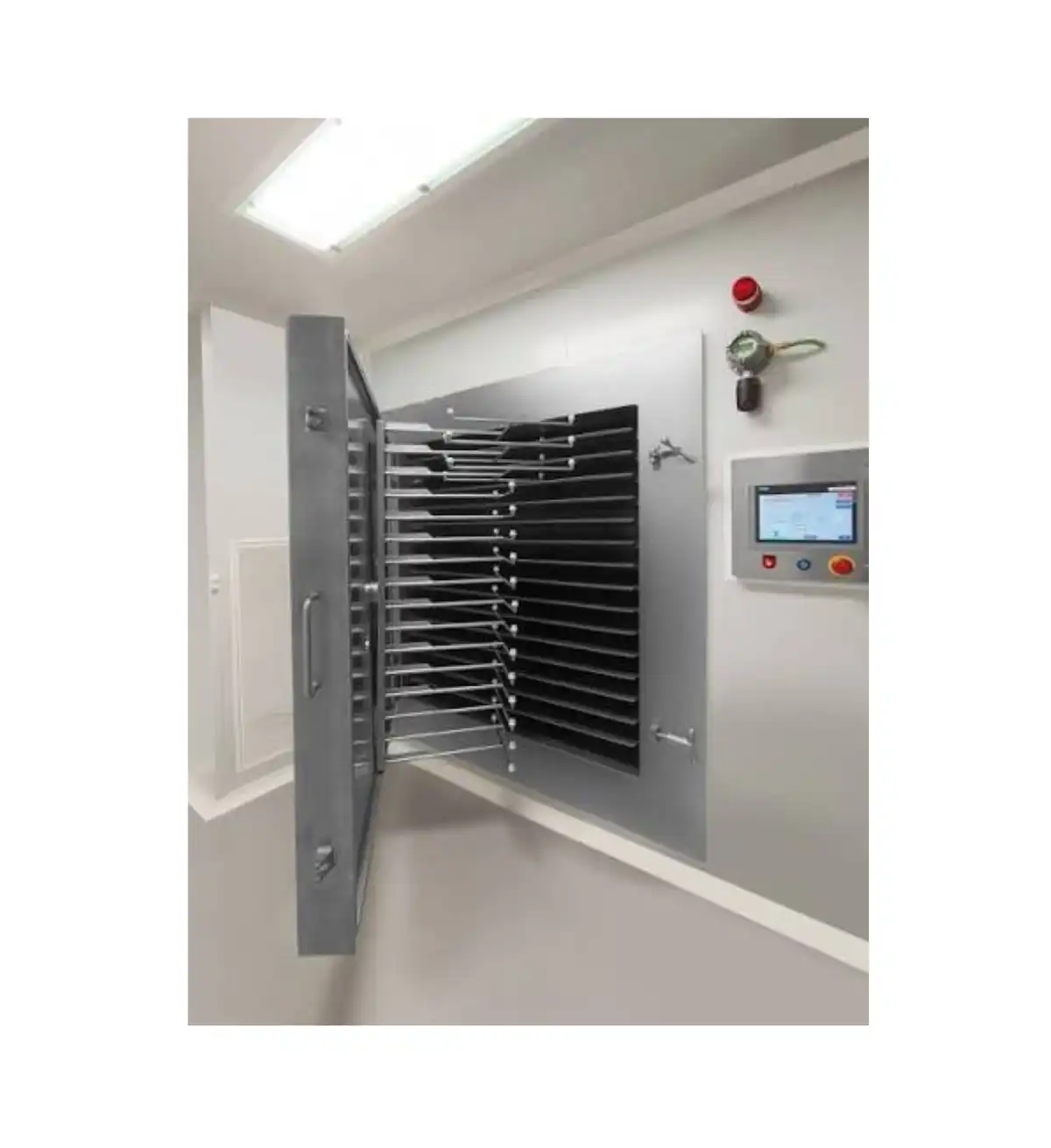

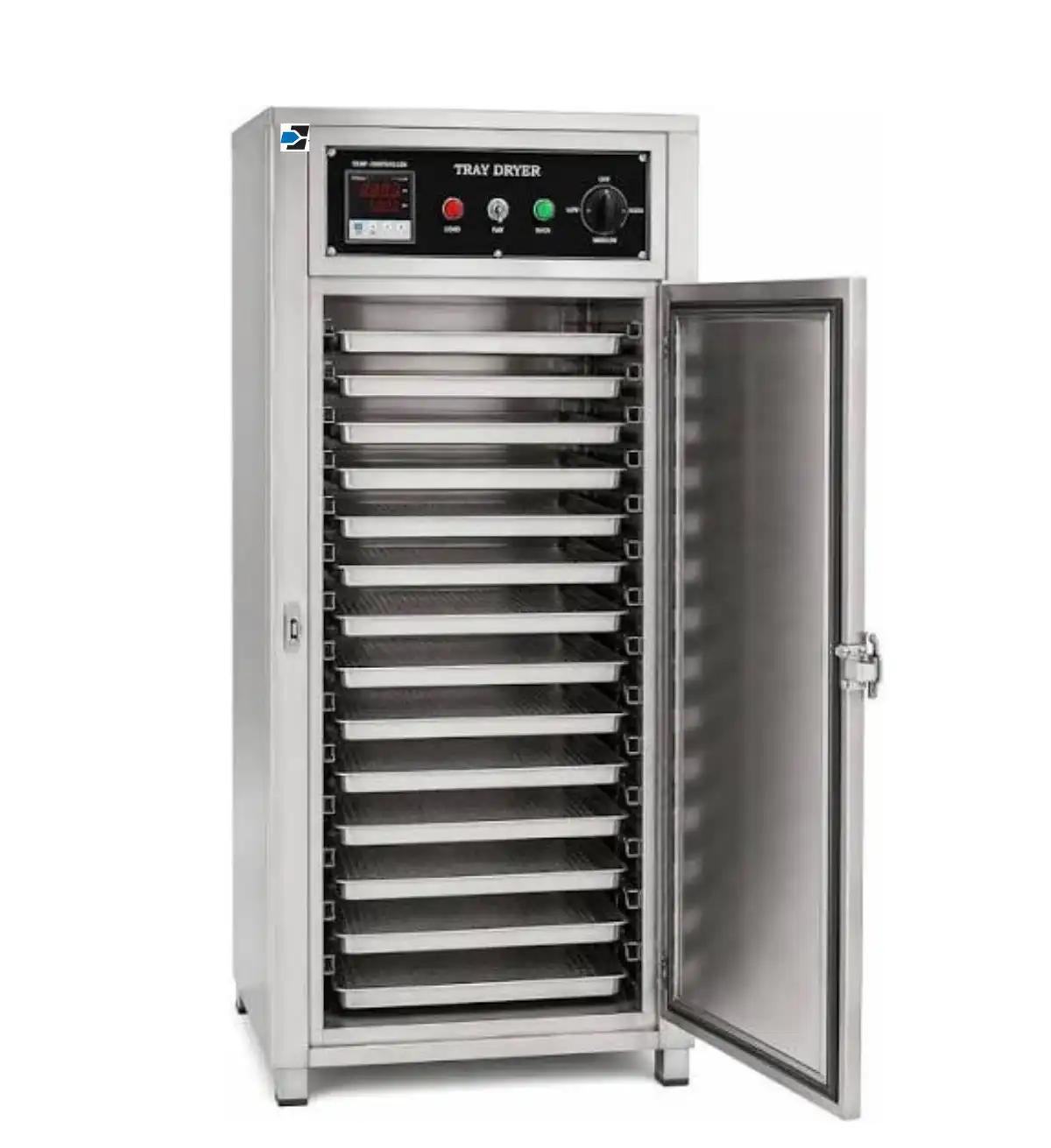

Tray Drier

Tray Drier is intended for performing different type of test where the temperature of sample environment must be controlled within certain limits. Our policy of continual liaison with leading researchers ensures we maintain our premier position as suppliers of high quality Tray drier and associated facilities. Our Tray Drier, were designed with Safety, Reliability, Ease of operating and ergonomically.

Main Features

Tray Drier

Test space dimensions are 6 trays to 196 trays. Temperature Range RT +5° C to +250° C. Temperature deviation +/-0.5° C. Temperature Resolution 0.1° C. Temperature Gradient +/- 1° C to 2° C. Average Temperature Raise /Fall 1° C to 5° C.

Construction

Tray Drier

Interior structure made of air tight type. 16 Or 18 SWG 304 grade stainless Steel / CRCA with rust proof paint /Aluminium with adjustable / removable shelving/ Trolly system. Outer external structure made of 16 Or 18 SWG CRCA /GI/ Stainless steel with electrostatic powder super fine coating finishing for a good appearance.

Insulation is environmentally friendly free of asbestos and CFC free mineral fiber insulation guarantees the best possible insulation values and hence, it will decrease the operating costs.

Door hinges fitted on the right hand side of the chamber with front opening Single / Double door. Double lined ‘A’ grade silicon gasket on door as well as chamber body so that like proof tightens the door for better performance with multi pan glass viewing window. Defogger heaters provided with an auto cut – off as well as suitable illumination provided to view the specimen under test.

Performance

Tray Drier

Air circulation within the chamber with suitable capacity of fan motor and impeller for uniform distribution of temperature and humidity to maintain within desired limits. Only the impeller will be exposed in the conditioning plenum with drive motor from outside of the chamber. Condition plenum covered with a detachable type sheet for friendly maintenance of the chamber.

Quick responding jacket type air heaters are used for heating system to achieve the set value temperature. Highly uniform temperature distribution minimises variations in test results over multiple specimens. Air heaters are placed in such manner that, there is no direct heat radiation from the heaters on to the test specimen.

Instrumentation System

Programmable controller using large screen display. Instrumentation package features flexible. Other functions are included user friendly operation with TFT LCD touch screen as well as key input, graphical display of program patterns, testing history trend grapes. A no. of programs & profile segments with ramp & soak duration provided for cyclic operation.

The controller is able to communicate with many different types of hardware using high speed RS 232/485 communications ports, networking and USB communications for fast downloads. Power failure recovery operation system.

Microprocessor PID non programmable controller for Temperature in RE models.

P.T 100 sensor is measuring the temperature.

Safety Devices

Tray Drier equipped with an emergency stop switch. High reliability and operator safety. Easy protection of chamber and specimen in case of failure. Chambers stop if the door is opening as operator safety. European style design signal tower.

Control circuit over current protection. Thermal fuse. Adjustable adequate safety cut – out against high and low temperatures. Chamber door limit switch. Every electrical functional circuit is equipped its own safety facility which shuts down the functional circuit affected or the entire test chamber in case of a malfunction.

Utility

Cable Port holes are located on the left or on the right side of the test chamber and shall be used for inserting measurement and control cables, other supply connections or additional equipment with rubber plug.

Standard specification shelves and shelf are added as required.

Drain out let pipe with suitable fittings.

Electrical connection 415 V AC +/- 10%, 3 phase/N/PE 50 Hz. 230 V AC +/-10%, 1 phase

Model No Temperature Range Trays in capacity
ITDCT-250 RE RT +5°C to +250°C 6 Trays to 196 Trays
ITDCT–200 RE RT +5°C to +200°C 6 Trays to 196 Trays
ITDCT–150 RE RT +5°C to +150°C 6 Trays to 196 Trays
ITDCT–100 RE RT +5°C to +100°C 6 Trays to 196 Trays
ITDCT-250 LO RT +5°C to +250°C 6 Trays to 196 Trays
ITDCT-200 LO RT +5°C to +200°C 6 Trays to 196 Trays
ITDCT-150 LO RT +5°C to +150°C 6 Trays to 196 Trays
ITDCT–100 LO RT+5°C to +100°C 6 Trays to 196 Trays

Note: LO = Logic programmable type models. RE = Non Programable models.
